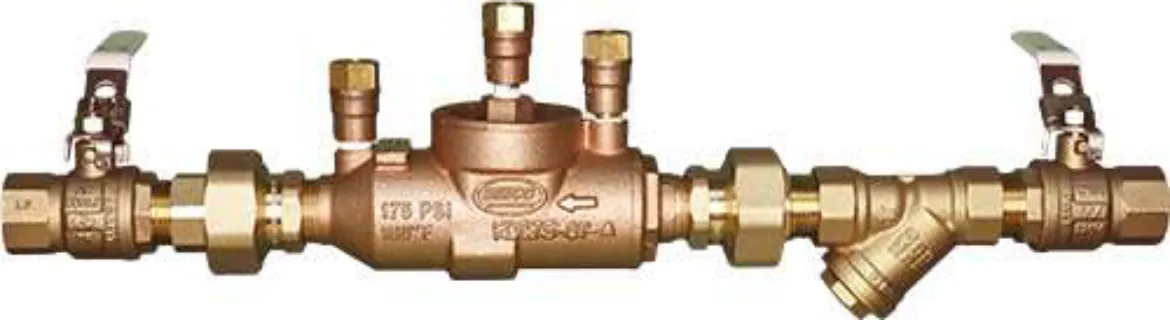

The RWC BEECO Double Check Valve is designed to give protection against medium hazard backflow situations.
The device features two mechanically independent, spring loaded, centre stem, guided check valves. The device has a cast iron or lead-free bronze body, with a single access cover. The assembly has three vertical test cocks and two shut off valves which are quarter-turn, full port and resilient seated.
The seat of each check valve is constructed from Norylâ„¢ and is replaceable. The check valves are held in place by a NorylTM or stainless steel clips.
- Corrosion resistant
- Designed for easy and quick in line maintenance and testing
- Low head loss
- Interchangeable poppet and spring
- Maximum working pressure of 1200kPa
- Operating temperature range of 1°C to 82°C up to 50mm BSP Threaded
- Operating temperature range of 1°C to 60°C from 65mm to 200mm Flanged Table E
- Approved to AS 2845-1
