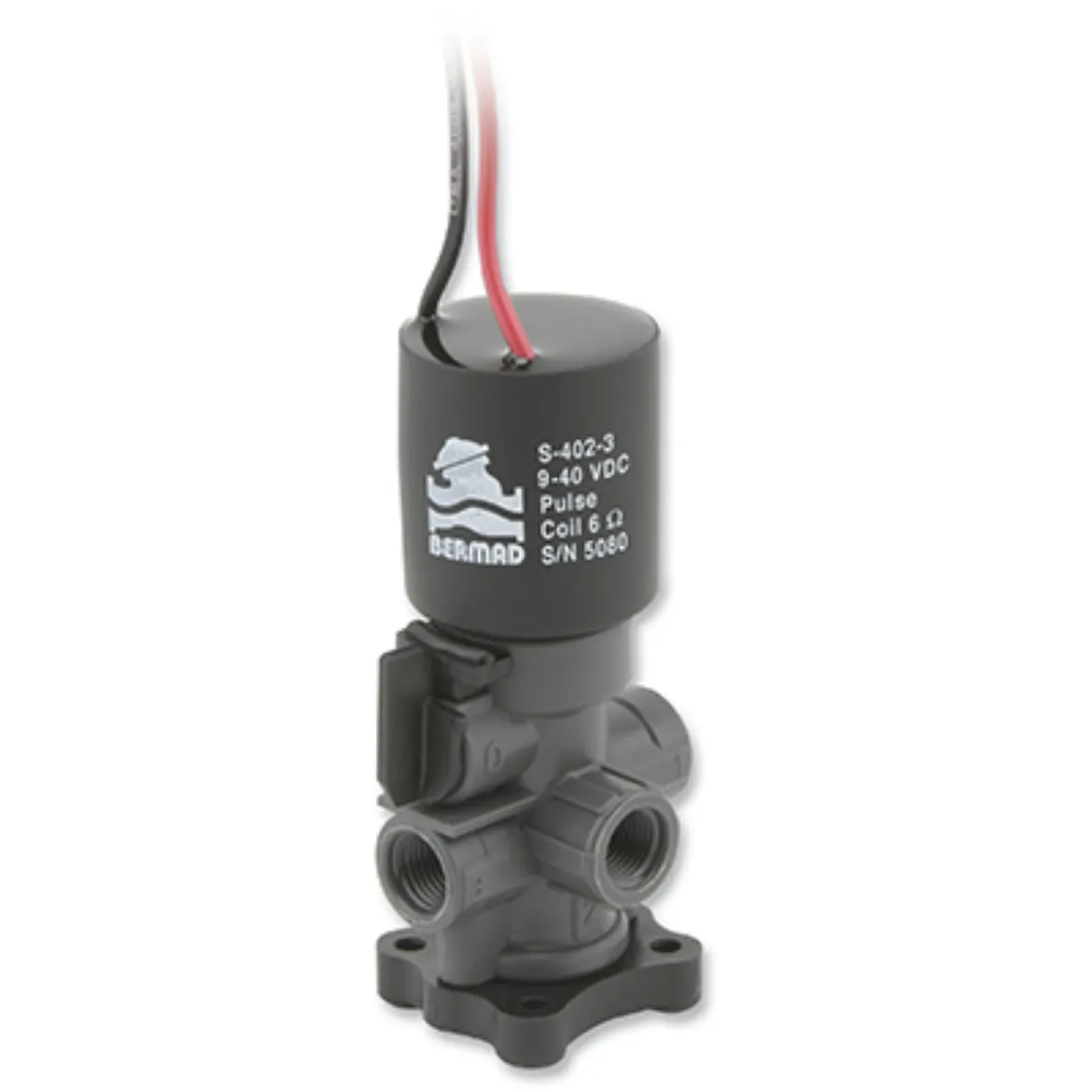

The BERMAD Model S-402-3W-BB is a compact 3-Way Latching Solenoid pilot valve comprised of two main components: a solenoid and a 3-way hydraulic pilot valve. The BERMAD latching solenoid can control valves independently or in combination with other control circuit accessories. Model S-402-D-3W-BB consumes power only when switching positions, using a very short electric impulse. This prolongs life of batteries and enables solar recharging. The hydraulic base features a manual override and consists of a bracket for attaching to the valve or to a solenoid manifold.

• Advanced Construction Materials, Unique Plastic Casing
  • Proven pressure, voltage and weather resistance
  • Highly durable in corrosive environments
  • Protection Class- ip68; NEMA Type 6D
• Superb Internal Design and Finish
  • Reliable operation under dirt loaded water

• Short Electrical Impulse Latch Activation
  • Extremely low power consumption
  • Low voltage battery operation
  • Saves wires and infrastructures
  • No coil heating
  • Suites most Battery Operated Controllers on the market
  • Applicable in solar activated systems
• Hydraulic Base with Installation Bracket
  • High flow capacity quickens valve response
  • No dirt sedimentation inside solenoid actuator
  • Manual override open and close
  • Simple installation to valve or manifold

Rֺeliable and Durable Product that Bears the Stamp of BERMAD Quality
