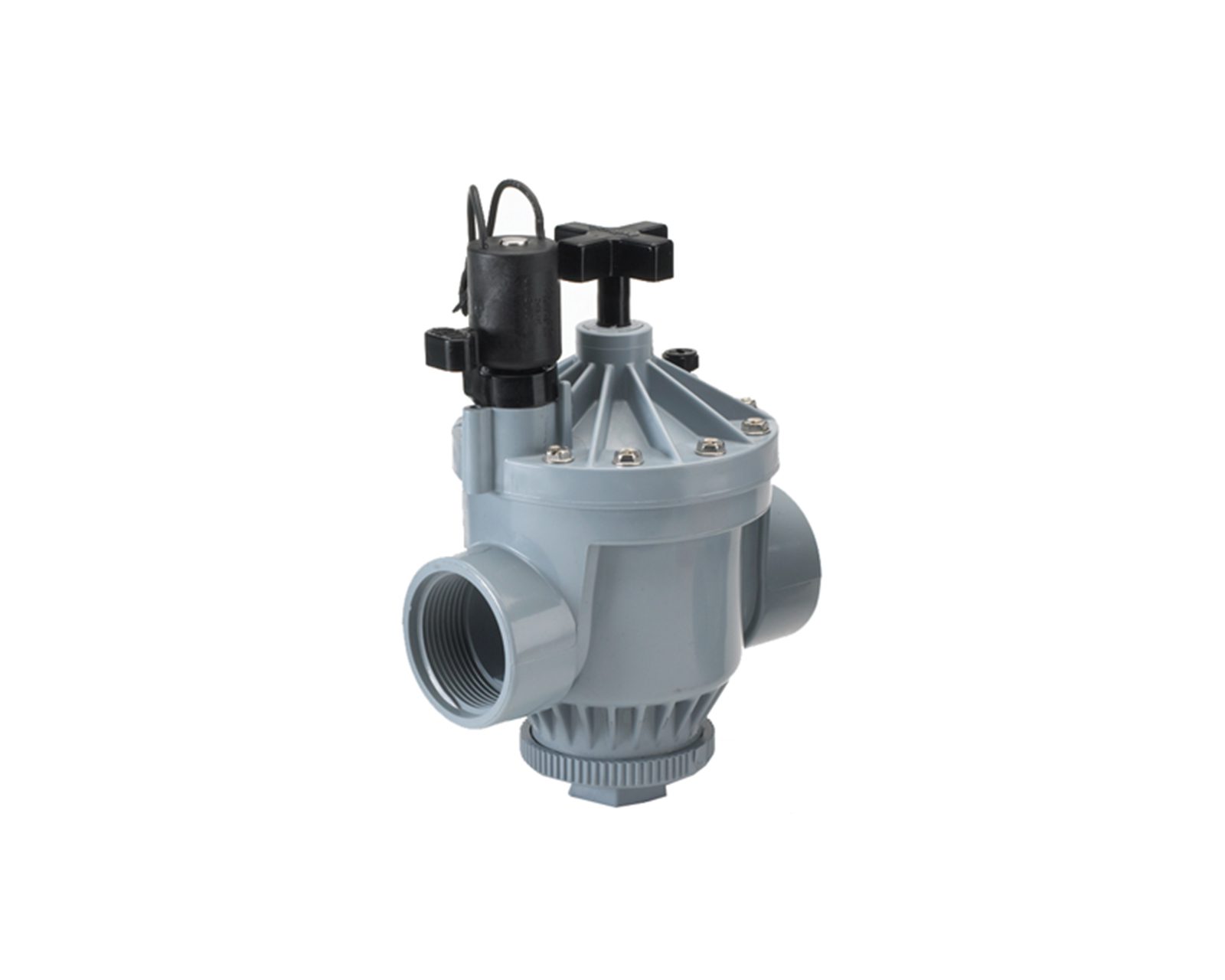

These durable, heavy-duty commercial valves offer a selection of key features designed to provide reliable, cost-effective performance under the most challenging conditions.

• 40mm and 50mm Models
• Flow Control allows flow adjustment and manual shutoff
• High-strength ribbed bonnet and bottom inlet
• Double-beaded diaphragm provides leak-proof seal
• Slow-closing design reduces water hammer

• Flow Range:
  • 40 mm: 80 to 300 Lpm
  • 50 mm: 225 to 450 Lpm
• Pressure Range: 140 – 1034 kPa
  • Maximum Pressure of 800 kPa if using DC latching coil (DCL)

Electrical Specifications

• Solenoid: 24 VAC
• Inrush volt-amp: 24 VAC – 9.6 VA
• Inrush current: 0.4 amp
• Holding volt-amp: 24 VAC – 4.8 VA
• Holding current: 0.2 amp
